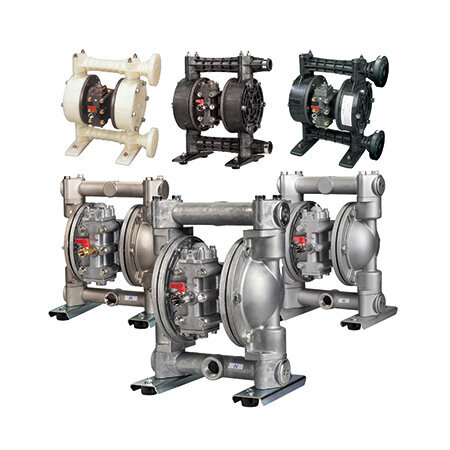

| Lò xo loại C ngăn chặn các điểm dừng trung gian và đạt được hoạt động ổn định. |
Được trang bị nút đặt lại để giảm thiểu thời gian ngừng hoạt động trong trường hợp máy bơm dừng do mòn van chuyển mạch khí . |
 |
 |
|
Cả van chuyển khí hoàn toàn không dầu và van điều khiển vận hành van chuyển khí ở giới hạn hành trình đều không có dầu. Không cần bôi trơn thường xuyên. |
Dễ dàng thay thế Không cần tháo rời máy bơm khi thay thế. |
 |
| Body Material |
A: Aluminum (ADC12) |
S: Stainless Steel (SCS14) |
F: Cast Iron (S45C) |
P:GF Polypropylene (PP-GF) |
P: GF Polypropylene (PP-GF) |
V: CF Kynar(R)(PVDF-CF) | V: CF Kynar(R)(PVDF-CF) | |
| Diaphragm Material | ||||||||
|
C: Neoprene (CR) |
NDP-25BAC (851328) |

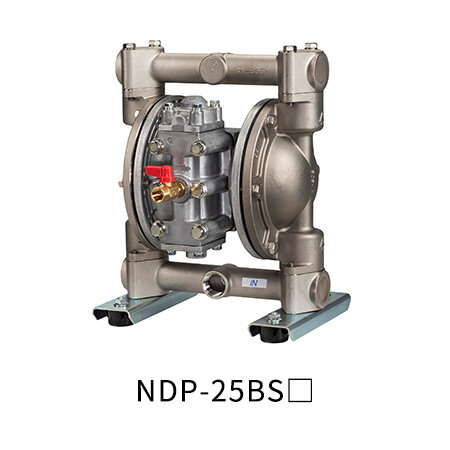

NDP-25BSC (851338) |

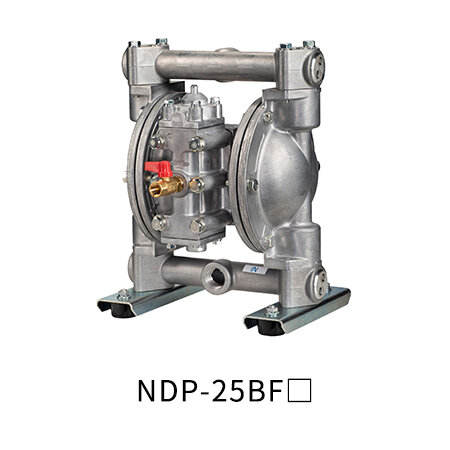

NDP-25BFC (851333) |
NDP-25BPC (851669) |
NDP-25BPC-FL(853835) | ー | ー | |
|
N: Buna N (NBR) |
NDP-25BAN (851329) |
NDP-25BSN (851339) |
NDP-25BFN (851334) |
NDP-25BPN (852598) |
NDP-25BPN-FL(853836) | ー | ー | |
| E: EPDM |
NDP-25BAE (851330) |
NDP-25BSE (851340) |
NDP-25BFE (851335) |
NDP-25BPE (852600) |
NDP-25BPE-FL(853837) |
NDP-25BVE (854926) |
NDP-25BVE-FL(854937) | |
|
V: Viton(R) (FKM) |
NDP-25BAV (851331) |
NDP-25BSV (851341) |
NDP-25BFV (851336) |
NDP-25BPV (852599) |
NDP-25BPV-FL(853838) |
NDP-25BVV (854927) |
NDP-25BVV-FL(854938) | |
| T: PTFE |
NDP-25BAT (851332) |
NDP-25BST (851342) |
NDP-25BFT (851337) |
NDP-25BPT (851670) |
NDP-25BPT-FL(853839) |
NDP-25BVT (854928) |
NDP-25BVT-FL(854939) | |
|
H: Hytrel(R) (TPEE) |
NDP-25BAH (851731) |
NDP-25BSH (851733) |
NDP-25BFH (851732) |
NDP-25BPH (851735) |
NDP-25BPH-FL(853840) |
NDP-25BVH (854929) |
NDP-25BVH-FL(854940) | |
|
S: Santoprene(R) (TPO) |
NDP-25BAS (852696) |
NDP-25BSS (852698) |
NDP-25BFS (852697) |
NDP-25BPS (852699) |
NDP-25BPS-FL(853841) | ー | ー | |
|
H/T: Hytrel(R) (TPEE) |
NDP-25BAH/T (851878) |
NDP-25BSH/T (851879) |
NDP-25BFH/T (851880) |
NDP-25BPH/T (851881) |
NDP-25BPH/T-FL (853842) |
ー | ー | |
| Wetted Parts Material | ||||||||
| Ball Valve | NDP-25B〇H/T: PTFE Others: Same as the diaphragm material | |||||||
| Valve Seat | SMS1025 | SUS316 | SMS1025 | PP-GF | PVDF-CF | |||
| Valve Stopper | ADC12 | SCS14 | PP-GF | PVDF-CF | ||||
| Center Disk |
NDP-20BAT: A5056 Others: SUS316 |
SUS316 | SUS316 |
PP-GF SCS13 (Insert material) |
PVDF-CF SUS13 (Insert material) |
|||
| Specifications | ||||||||
| Nominal Diameter | 1"(25 mm) | |||||||
| Material Connection | Suction Port | Rc 1 | JIS flange 10K 25A equivalent | Rc 1 | JIS flange 10K 25A equivalent | |||
| Discharge Port | Rc 1 | JIS flange 10K 25A equivalent | Rc 1 | JIS flange 10K 25A equivalent | ||||
| Air Connection | Supply Port | Rc 3/8 (W/air valve) | ||||||
| Exhaust Port | Rc 3/4 (W/silencer) | |||||||
| Air Supply Pressure | 0.2～0.7Mpa ※1 | |||||||
| Maximum Discharge Pressure | 0.7MPa | |||||||
* 1 The maximum supply air pressure for a type with a resin-made pump body will depend on the liquid temperature.
*2 The water discharge is provided as a rough approximation only. The discharge will differ depending on factors such as the liquid to be transferred and the piping conditions.
*3 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.
