| Model |

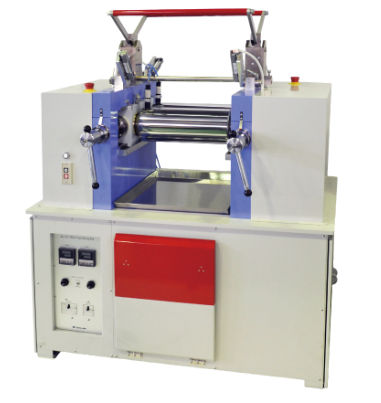

No.191-TM TEST MIXING ROLL (Electric Heating) |
No.191-WM TEST MIXING ROLL (Steam Heating) |
|---|---|---|
| Roll | φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds) | φ3″ × 8″、 φ4″ × 8″、 φ5″ × 12″、 φ6″ × 15″、 φ8″ × 20″(5 kinds) |
| Heating Method | Electric Heating (Cartridge Heater) | Steam Heating (Rotary Joint) |
| Temperature Range | Max. 200 °C (Option: Max. 300 °C) | Max. 200 °C(Vapor Pressure of 1.5 MPa or more) |
| Gear Ratio | 1：1.25 | 1：1.25 |
| Roll Rotation Speed | Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm | Front 12.5 to 31.25 rpm, Rear 10 to 25 rpm |
| Safety Device |
Knee Punch Stop Plate, Emergency Stop SW, Overload Protecting Metal Breaker (Option: Y-Shape type Emergency Stop Bar, Area Optical Sensor, Inverse Rotation Device) |
Knee Punch Stop Plate, Emergency Stop SW, Overload Protecting Metal Breaker (Option: Y-Shape type Emergency Stop Bar, Area Optical Sensor, Inverse Rotation Device) |
| Oiler | Needle Valve type | Needle Valve type |
| Accessories | Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant | Shifting Plate: 1 set, Mill Pan, High-Temp. Lubricant |
| Option | Variable Speed Control Spec, Digital Temperature Controller, Automatic Lubricating Device,Doctor Device, Hot Water Circulation Tank (Only for WM Model),Oil Circulating Device (Only for WM Model) | Variable Speed Control Spec, Digital Temperature Controller, Automatic Lubricating Device,Doctor Device, Hot Water Circulation Tank (Only for WM Model),Oil Circulating Device (Only for WM Model) |
| Power Source | AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz | AC 200 V, 3-Phase, 20 to 50 A, 50/60 Hz |
| Dimensions/ Weight (Approx.) | Differ by Specifications. |
Differ by Specifications. |
