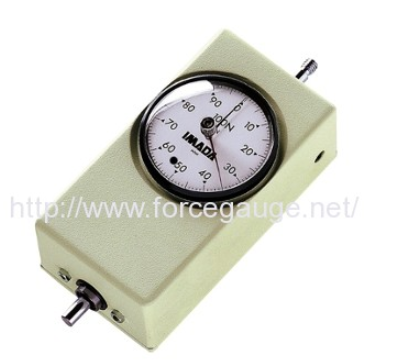

UKT-50N / UKK-50N Imada
  • b76.png

UKT-50N / UKK-50N Imada
Đồng hồ cơ Compact Imada

Chuyên mục: ĐỒNG HỒ CƠ COMPACT

Feature

– Small in size as two third as the standard type gauge.
– UKT is for tension, UKK is for compression.
– Peak hold function.
– Zero adjustment for tare weight.

LIÊN HỆ

Specifications for UK series Compact Model Mechanical Force Gauge

Model UKT series UKK series
Accuracy +/-0.3% F.S.
Direction of measurement For tension only For compression only
Stroke 10mm
Unit of measurement Refer to the table below
Reading method Real-time track or Peak-hold
Divisions 100 lines*
Operating temperature 0 to +40 degree Celcius
Weight Approx. 300g
Accessory 4 kinds of attachments for tension 5 kinds of attachments for compression
Inspection certificate, Instruction manual, Carrying case

* 30N, 300N, 3K, 30K, 30lb : 120 divisions


Model Table of UK series Compact Model Mechanical Force Gauge

UKT series (For tension only) / UKK series (For compression only)
Model Capacity 1 division Thread
UKT-20N UKK-20N 20N 0.2N M6
UKT-30N UKK-30n 30N 0.25N
UKT-50N UKK-50N 50N 0.5N
UKT-100N UKK-100N 100N 1N
UKT-200N UKK-200N 200N 2N
UKT-300N UKK-300N 300N 2.5N
Model(NOT available in Japan) Capacity 1 division Thread
UKT-2K UKK-2K 2kgf 20gf M6
UKT-3K UKK-3K 3kgf 25gf
UKT-5K UKK-5K 5kgf 50gf
UKT-10K UKK-10K 10kgf 100gf
UKT-20K UKK-20K 20kgf 200gf
UKT-30K UKK-30K 30kgf 250gf
Model(NOT available in Japan) Capacity 1 division Thread
UKT-5lbf UKK-5lbf 5lbf 0.05lbf M6
UKT-10lbf UKK-10lbf 10lbf 0.1lbf
UKT-20lbf UKK-20lbf 20lbf 0.2lbf
UKT-30lbf UKK-30lbf 30lbf 0.25lbf
UKT-50lbf UKK-50lbf 50lbf 0.5lbf

*In Japan, only N models are allowed to use due to the Measurement Law of Japan.


Dimensions

（Unit:mm）
