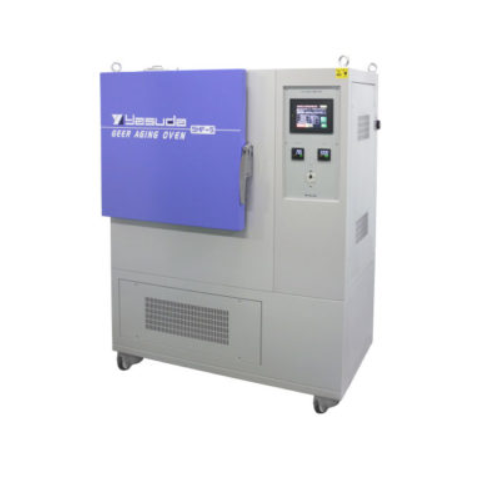

Tủ kiểm tra lão hóa vật liệu cao su Yasuda No.102
Model: No.102

Không giống như các tủ nung thông thường, loại GEER TYPE AGING OVEN đáp ứng các yêu cầu kỹ thuật không thể thiếu đối với các thử nghiệm lão hóa như cơ chế khép kín, vận tốc không khí, đồng nhất trong lò, đo tỷ lệ thông gió, và các mẫu mẫu quay, cho kết quả kiểm tra đáng tin cậy.

Specification

Inner dimensions	[Standard]W450 × D450 × H500 mm	[Special]W600 × D600 × H600 mm
Chamber Capacity	225,225 cm3	417,600 cm3
Temperature range	Room Temperature + 20 to 300 °C *	Room Temperature + 20 to 300 °C *
Air velocity	Low: 0.5 ± 0.1 m/s,  High: 1.0 ± 0.2 m/s (Controlled vie touch panel)	Low: 0.5 ± 0.1 m/s,  High: 1.0 ± 0.2 m/s (Controlled vie touch panel)
Air Exchange Rate Measurement	Power Consumption Method	Power Consumption Method
Air Exchange Rate Control	Adjustable between 3 to 10 times/hr, 5 to 20 times/hr or over 60 times/hr	Adjustable between 3 to 10 times/hr, 5 to 20 times/hr or over 60 times/hr
Hanger Rotation Speed	7.5 ± 2.5 rpm	7.5 ± 2.5 rpm
Safety Device	Overheat Detection Device, Circuit Braker	Overheat Detection Device, Circuit Braker
Accessories	Specimen Hanger 2 stages, Clip 40 pcs, Shelf 2 pcs	Specimen Hanger 2 stages, Clip 40 pcs, Shelf 2 pcs
Option	CSV Output, Analog Voltage Output, Miniprinter, UL Type,Air Exchange Rate 100 to 200 times/hr modification.	CSV Output, Analog Voltage Output, Miniprinter, UL Type,Air Exchange Rate 100 to 200 times/hr modification.
Power source	AC 200 V, 3-Phase, 30 A, 50/60 Hz When Air Exchange Rate is 100 to 200 times/hr; AC 200 V, 3-Phase, 40 A, 50/60 Hz	AC 200 V, 3-Phase, 40 A, 50/60 Hz
Dimensions/ Weight (Approx.)	[Standard]SHF-S: W1,180 × D700 × H1,560 mm/ 290 kg SHF-SA: W1,250 × D700 × H1,650 mm/ 300 kg	[Special]SHF-S: W1,350 × D900 × H1,650 mm/ 365 kg SHF-SA: W1,400 × D900 × H1,750 mm/ 375 kg

* Please contact us for 400 °C Type.

Models

SHF-S	Equipped with air exchange rate measurement/display via touch panel.Damper is opened/closed manually.
SHF-SA	Equipped with air exchange rate measurement/display via touch panel.Automatic Damper Control.
