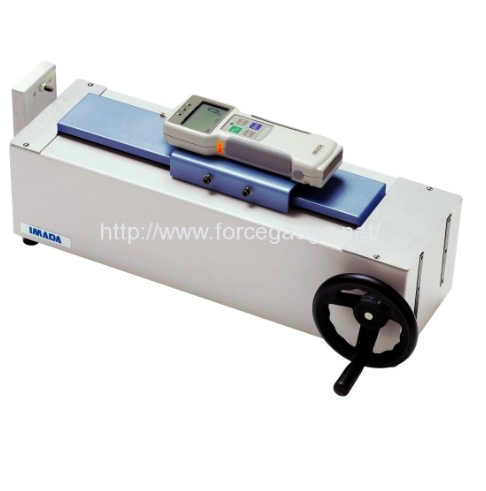

– Easy to set your samples due to horizontal model.
– More stable measurement due to handle operation.
| Model | SH-1000N series | SH-3000N series |
|---|---|---|
| Capacity | 1000N (100kgf) | 3000N (300kgf) |
| Stroke when a force gauge is mounted(*1) | 250mm | 320mm |
| Travel of a mounted force gauge | 1.2mm / a complete turn of its handle | 0.6mm / a complete turn of its handle |
| Size | Please refer to dimensions | |
| Weight | Approx.15kg | Approx.22kg |
| Gauges that can be combined(*2) | Mechanical / Digital Force gauges | |
| Load cells and high capacity model cannot be combined. | Load cells cannot be combined. | |
| Accessory | Gauge mounting plate, Screws to mount a force gauge, Tools, Instuction manual | |
| Option | Length meter, Long stroke | |
*1 Stroke is, in other words, max distance from the tip of a Z seires force gauge to a test stand’s table.
*2 Please contact us if you would like to combine other force gauges or load cells with the test stand.
（Unit:mm）
