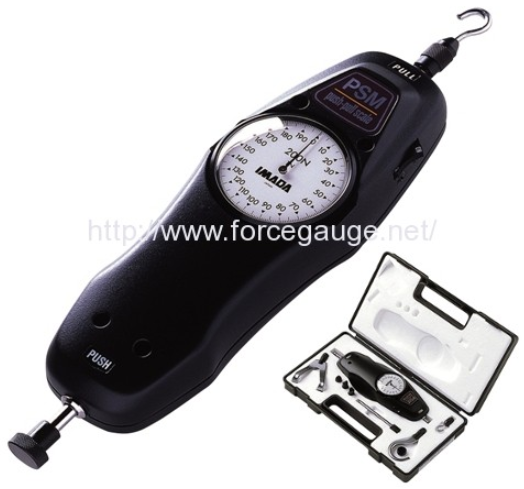

| Model | PSM series |
|---|---|
| Accuracy | +/-0.1% F.S |
| Stroke | 10mm |
| Unit of measurement | Please refer to the table below |
| Reading method | Real-time track or Peak-hold |
| Divisions | 200lines* |
| Operating temperature | 0 to +40 degree Celcius |
| Weight ** | Approx. 660g(PSM-300N) |
| Accessory |
8 kinds of attachments,Inspection certificate, Instruction manual, Carrying case |
*30N, 300N, 3K, 30K: 150 divisions.
**Weight varies according to the capacities even in the same series, so we note the weight of the most representative one.
| Model | Capacity | 1 division | Thread |
|---|---|---|---|
| PSM-20N | 20N | 0.1N | M6 |
| PSM-30N | 30N | 0.2N | |
| PSM-50N | 50N | 0.25N | |
| PSM-100 N | 100N | 0.5N | |
| PSM-200N | 200N | 1N | |
| PSM-300N | 300N | 2N | |
| PSM-500N | 500N | 2.5N | |
| Model(NOT available in Japan) | Capacity | 1 division | Thread |
| PSM-2K | 2kgf | 10gf | M6 |
| PSM-3K | 3kgf | 20gf | |
| PSM-5K | 5kgf | 25gf | |
| PSM-10K | 10kgf | 50gf | |
| PSM-20K | 20kgf | 100gf | |
| PSM-30K | 30kgf | 200gf | |
| PSM-50K | 50kgf | 250gf |
*In Japan, only N models are allowed to use due to the Measurement Law of Japan.
（Unit:mm）
