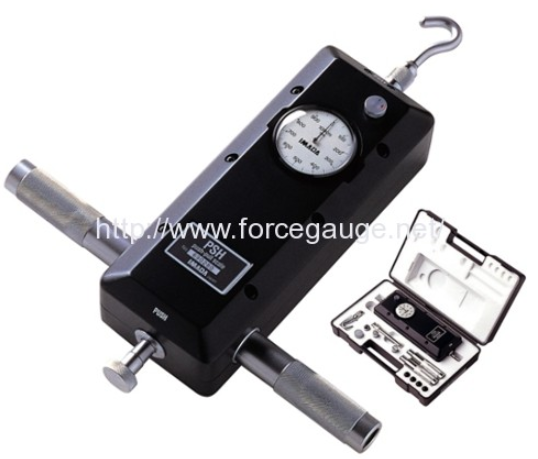

PSH-2000N Imada
  • a166.png

PSH-2000N Imada
Đồng hồ cơ dãy đo lớn Imada

Chuyên mục: Đồng hồ cơ dải đo lớn

Feature

– Available in capacity from 500N (50kgf) up to 3000N (300kgf).
– Peak hold function.
– Zero adjustment for tare weight.

LIÊN HỆ

Specifications for PSH series High Capacity Model Force Gauge

Model PSH series
Accuracy +/-0.1% F.S.
Stroke 10mm
Unit of measurement Please refer to the table below
Reading method Real-time track or Peak-hold
Divisions 100lines*
Operating temperature 0 to +40 degree Celcius
Weight Approx. 3.1kg (Vary according to models)
Accessory 6 kinds of attachemets, handles (2 pcs), gauge mounting plate bolts (4 pcs), carrying case

* 3000N, 300K, 300lb : 120 divisions


Model table of PSH series High Capacity Model Mechanical Force Gauge

Model Capacity 1 division Thread
PSH-500N 500N 5N M10
PSH-1000N 1000N 10N
PSH-2000N 2000N 20N
PSH-3000N 3000N 25N
Model(NOT available in Japan) Capacity 1 division Thread
PSH-50K 50kgf 0.5kgf M10
PSH-100K 100kgf 1kgf
PSH-200K 200kgf 2kgf
PSH-300K 300kgf 2.5kgf
Model(NOT available in Japan) Capacity 1 division Thread
PSH-200lb 200lb 2lb M10
PSH-300lb 300lb 2.5lb
PSH-500lb 500lb 5lb

*In Japan, only N models are allowed to use due to the Measurement Law of Japan.


Dimensions

（Unit:mm）
