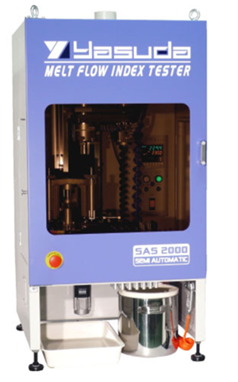

Máy kiểm tra chỉ số nóng chảy (Tự động) Yasuda No.120-SAS
Model: No.120-SAS

Standard: JIS-K6719-1/2、K6921-2、K6922-2、K6923-1、K6924-1、K6926-2、K7210、ASTM-D1238、ISO-1133
This tester is used to measure the melt flow index of thermo-plastic. The melt flow index is acquired from the weight or the volume of the extruded specimen at a specified cylinder temperature and with a specified load of piston through the die. The tester is assorted with an automatic cleaning system which enables to perform 1 test cycle without discontinuation (option of 3 test cycles).

Specification

Hangings	1 or 3 Hangings (2 kinds)
Die	φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston	Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder	Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range	Max. 300 °C (Option: Max. 400 °C)
Weight Load	Choose the Largest Load from 0.325, 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf
Test Method	Method A: Manual (Option: Automatic)Method B: Automatic
Specimen Feeding	Automatic
Weight Loading	Automatic
Weight Change	Manual (Option: Automatic)
Cylinder Cleaning	Automatic (Solvent Cleaning can also be Automatic)
Die Cleaning	Automatic
Piston Cleaning	Manual (Option: Automatic)
Die Cleaning Rod Cleaning	Manual (Option: Automatic)
Cleaning Gauze Feeding	Manual
Data Processing	Method A: Manual (Option: Automatic)Method B: Automatic
Method B Measuring	Rotary Encoder
Software	Windows Compatible
Accessories	Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun
Option	Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor (Standard for No.120-LABOT)
Power Source	AC 100 V, 1-Phase, 15 A, 50/60 HzAC 200 V, 1-Phase, 20 A, 50/60 Hz (ISO-1133-2 Compatable Type)
Air Source	0.5 MPa or More
Dimensions/ Weight (Approx.)	1 Hanging: W625 × D600 × H1,150 mm, 100 kg3 Hangings: W625 × D680 × H1,150 mm, 120 kg
