Máy đo thời gian gel hóa (Magnet Type) Yasuda No.153
  • bb30.png

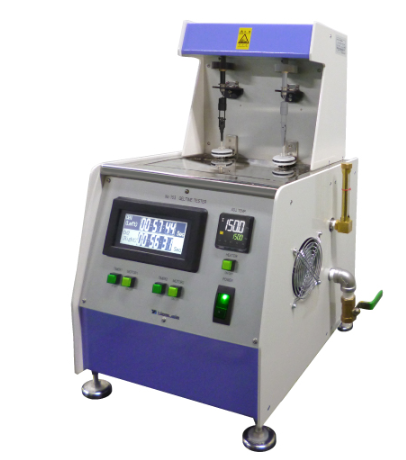

Máy đo thời gian gel hóa (Magnet Type) Yasuda No.153
Model: No.153

Chuyên mục: Máy kiểm tra đo thời gian gel hóa (gelation time) YASUDA

LIÊN HỆ
  • A tester (gelation tester) for easily measuring the gelation time of thermosetting resins.
  • The operation panel of the conventional model has been changed to a touch panel to improve operability.
  • When the rotor is rotated in the test tube containing the sample and the gelation of the sample progresses and a certain torque is applied to the rotor, the rotor is dropped by the magnetic coupling mechanism and the timer is stopped.

Model No.153 Gel Time Tester (Magnet Type)
Multiplier 2 pieces, 5 pieces (2 types)
Detected torque 3.7 ～ 4.0 gf⋅cm
temperature Max. 200 ° C
(Option: Refrigerator 10 to 200 ° C)
Rotor rotation speed 25 rpm (50 Hz), 24 rpm (60 Hz)
timer Max. 999,999 s or Max. 99 hr 59 min 59 sec
accessories Rotor (diameter φ5 × 110 mm) ··· 100 each
Test tube (outer diameter φ12 × 90 mm) ··· 100 each
option Silicon oil (about 2 L)
Power supply AC 100 V, single phase, 10 A, 50/60 Hz
Machine dimensions and weight 2 pieces: approx. W360 x D360 x H610 mm, approx. 30 kg
5 pieces: approx. W650 x D375 x H600 mm, approx. 50 kg
