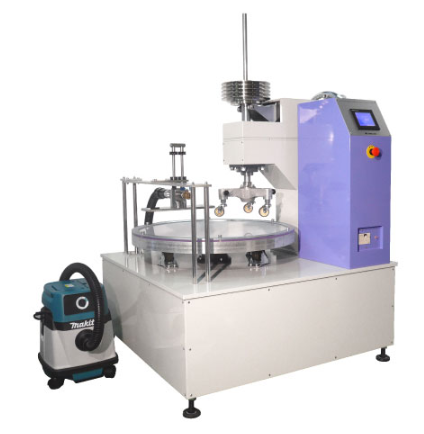

Máy đo độ mài mòn vật liệu sàn Yasuda No.159
  • bb35.png

Máy đo độ mài mòn vật liệu sàn Yasuda No.159
Model: No.159

Chuyên mục: Máy kiểm tra Holding force, stress crack, floor material fatigue, ross flexing tester YASUDA

Standard: JIS-A1454, L1021-11, (L1023), L4406, DIN-54 342
LIÊN HỆ
  • This machine is manufactured in compliance with the above standards.
  • We carry out caster chair tests for floor materials and floor coverings, especially textile floor coverings.
  • Mount the test piece on the circular sample table, place three casters and apply the specified load. The circular sample stand and casters are interlocked and rotated a specified number of times to perform the test.
  • Specimens are evaluated based on dimensional changes before and after the test, appearance changes and mechanical damage.

Test pieces Diameter φ700 mm
Circular sample table Diameter φ 800 mm ± 5 mm, thickness (acrylic plate) 8 ± 1 mm
Sample table rotation speed 19 rpm
Roller holder Radius R130 mm, caster mounting 3 pieces
Holder rotation speed 10 to 50 rpm (standard value 50 rpm)
caster Free wheel, diameter φ30-70 mm
load Initial load 10 kgf ~ Max. 120 kgf (standard value 90 kgf)
counter 6 digits (preset type), 6 digits (running type)
Reversing timer 1 ~ 999 sec
Suction device Vacuum cleaner (25-30 L / s)
Power supply 200 VAC, 3 phase, 20 A, 50/60 Hz
Machine dimensions and weight (reference value) About W1,270 × D1,250 × H1,750 mm ・ About 700 kg
