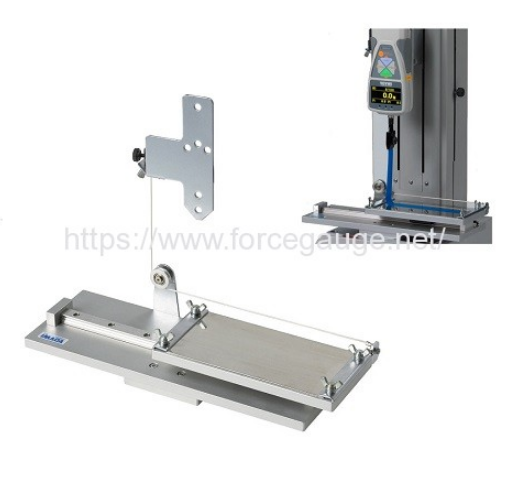

P90-200N/ P90-200N-EZ/ P90-200N-BB Imada
90 degree Peel (Adhesion) Test Fixture (Partly in accordance with ASTM D 6862-11)

Feature

– Ideal for 90 degree peel test of adhesives such as tapes
– Standard type P90-200N/ Economy type P90-200N-EZ/ Breadboard type P90-200N-BB are available
– Designed for peel test complying with a part of IEC, ISO and ASTM Standard

[Related Standard] (When P90-200N/ P90-200N-BB are used)
– IEC 249-1:1982 Base materials for printed circuits. Part 1: Test methods (Partly)  IEC 326-2:1990 Printed boards. Part 2 Test methods (Partly)
(Corresponding Japanese standard: JIS C5016:1994)

[Related Standard] (When P90-200N-BB is used)
– ISO 4525:2003 Metallic coatings-Electroplated coatings of nickel plus chromium on plastics materials (Partly) (Corresponding Japanese standard: JIS H 8630:2006)

[Related Standard] (When P90-200N is used)
– ISO 29862: 2007 Self adhesive tapes-Determination of peel adhesion properties (Partly)
(Corresponding Japanese standard: JIS Z0237: 2009)
– ASTM D6862-11: 2016 Standard Test Method for 90 Degree Peel Resistance of Adhesives (Partly)
– ASTM D3330: 2010 Standard Test Method for Peel Adhesion of Pressure-Sensitive (Partly)
– Japanese Pharmacopoeia 3.1.2.2: 17th Edition (Partly)

[Testing Applications]
-Adhesive tape 90 degree peel (bond) strength test
* Complies with a part of ISO 29862:2007 “Self adhesive tapes-Determination of peel adhesion properties”.
-Circuit board print (copper layer) peel strength test
* Complies with a part of IEC 249-1: “1982 Base materials for printed circuits. Part 1: Test methods” and
IEC 326-2:1990 “Printed boards. Part 2 Test methods”.
* Please click the application for product configuration and further information.

[Custom-made Applications]
-Temperature & Angle Adjustable Peel Tester
* It enables you to adjust temperatures (on a bonding surface) and angles for the peel test.
-Large Size of 90 Degree Peel Tester
-Peel Tester of Identification Card
* Complies with a part of ISO/IEC 10373-1 (2006)
* Please click the application for further information.

Specifications for  90 Degree Peel  Test Fixture (for Adhesion Test) P90-200N

*1 Only for P90-200N-BB
*2 P90-200N-EZ is not suitable when peel force is expected to change suddenly or to be below 0.4N.
*3 Contact us for compatibility of other models of test stands.
*An attachment to grip sample is sold separately.

Dimensions

（Unit:mm）
