Drum Pump

Safe Design with Intrinsically Explosion-Proof Specification.

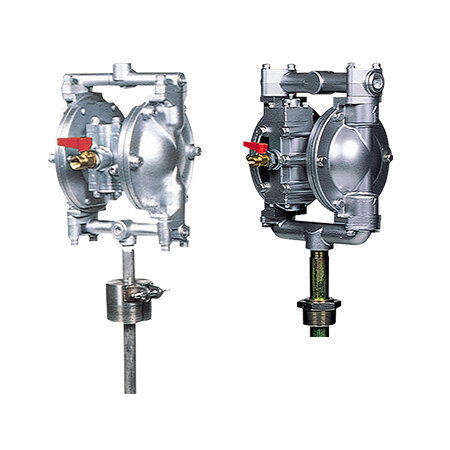

A drum type diaphragm pump that is fitted in a drum container, allowing for the safe transfer of fuel and other solvents. The pump can be used with ease by simply inserting a suction pipe into the 2B bung of the drum container, and securing it with the included bung adaptor.

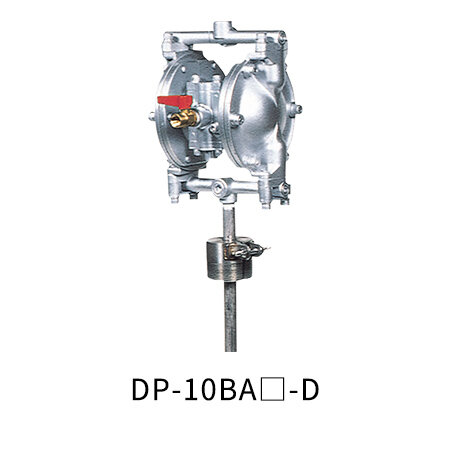

The DP-10B〇□-D series has a nominal diameter of 3/8" (10 mm), a maximum flow rate of approximately 18 L/min and a maximum size solid of 1 mm or less.

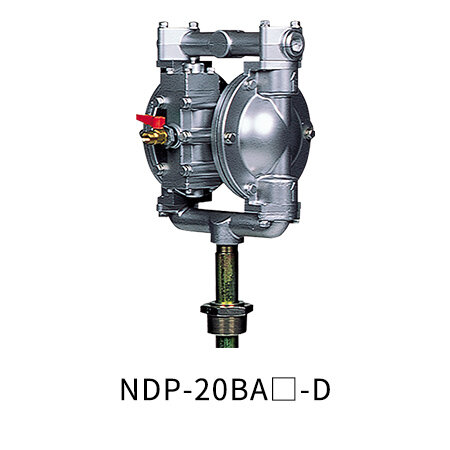

The NDP-20B〇□-D series has a nominal diameter of 3/4" (20 mm), a maximum flow rate of approximately 90 L/min and a maximum size solid of 2 mm or less.

Purchase the hose and discharge valve separately in accordance with the usage application.
Only aluminum (ADC12/AC2A/SGP) is available as the body material for the NDP-20 series, due to the net weight and operation aspects.

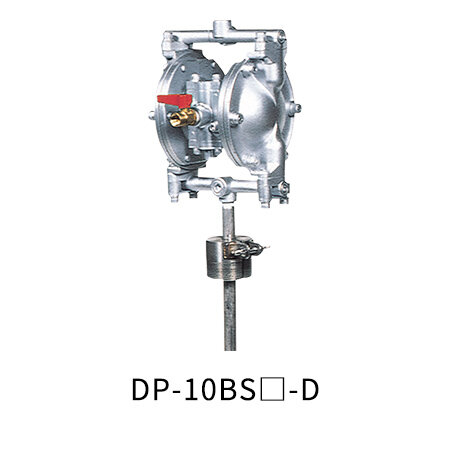

The suction tube method is recommended for the SUS material model.

■ Main Applications
Transfer of Fuel and Other Solvents from Drum Containers

CONTACT

■ Convenient for Small Portioning Work from Drum Containers
Designed in a form that is easy to use for drum containers, based on the DP-10/NDP-20 series diaphragm pump.
The pump can be used with ease by simply inserting a suction pipe into the 2B bung of the drum container, and securing it with the included bung adaptor.

■ Yamada’s Proprietary Design Air Switch Valve “C-Spool "
The air switch valve in the center section of the diaphragm pump is completely oil-free, so it does not require regular lubrication.
The operation assist using a C-spring suppresses stoppages during operation, and achieves stable operation.

◆ Air Switch Valve “C-Spool”

· The C-spring Prevents Stoppages during Operation Achieves stable operation.	· Equipped with a Reset Button Downtime due to pump stoppages in the case of abrasion of the air switch valve is kept to a minimum.

· Completely Oil-free Both the air switch valve and the pilot valve that activates the air switch valve at the stroke limit are designed to be oil-free. Does not require regular lubrication.	· Simple Replacement No need to disassemble the pump when replacing it.

Body Material		A: Aluminum (ADC12/SUS304)	S: Stainless Steel (SCS14/SUS304)	A: Aluminum (ADC12/AC2A/SGP)
Diaphragm Material
C: Neoprene (CR)		DP-10BAC-D (852918)	DP-10BSC-D (852921)	NDP-20BAC-D (851397)
N: Buna N (NBR)		DP-10BAN-D (852919)	DP-10BSN-D (852922)	NDP-20BAN-D (851396)
T: PTFE		DP-10BAT-D (852920)	DP-10BST-D (852923)	NDP-20BAT-D (851398)
H: Hytrel (R) (TPEE)		DP-10BAH-D (852934)	DP-10BSH-D (852935)	NDP-20BAH-D (852827)
Wetted Parts Material		Refer to the DP-10/NDP-20 specification table
Specifications
Nominal Diameter		3/8" (10 mm)		3/4" (20 mm)
Material Connection	Suction Port	Ø17.3 O.D.		Ø34 O.D.
	Discharge Port	Rc 3/8		Rc 3/4
Air Connection	Supply Port	Rc 1/4 (W/air valve)		Rc 1/4 (W/air valve)
	Exhaust Port	Rc 3/8 (W/silencer)		Rc 3/4 (W/silencer)
Air Supply Pressure		0.2~0.7 MPa
Maximum Discharge Pressure		0.7 MPa
Water Discharge/Cycle		50 mL *1		NDP-20BAT-D: 240 mL Others: 350 mL

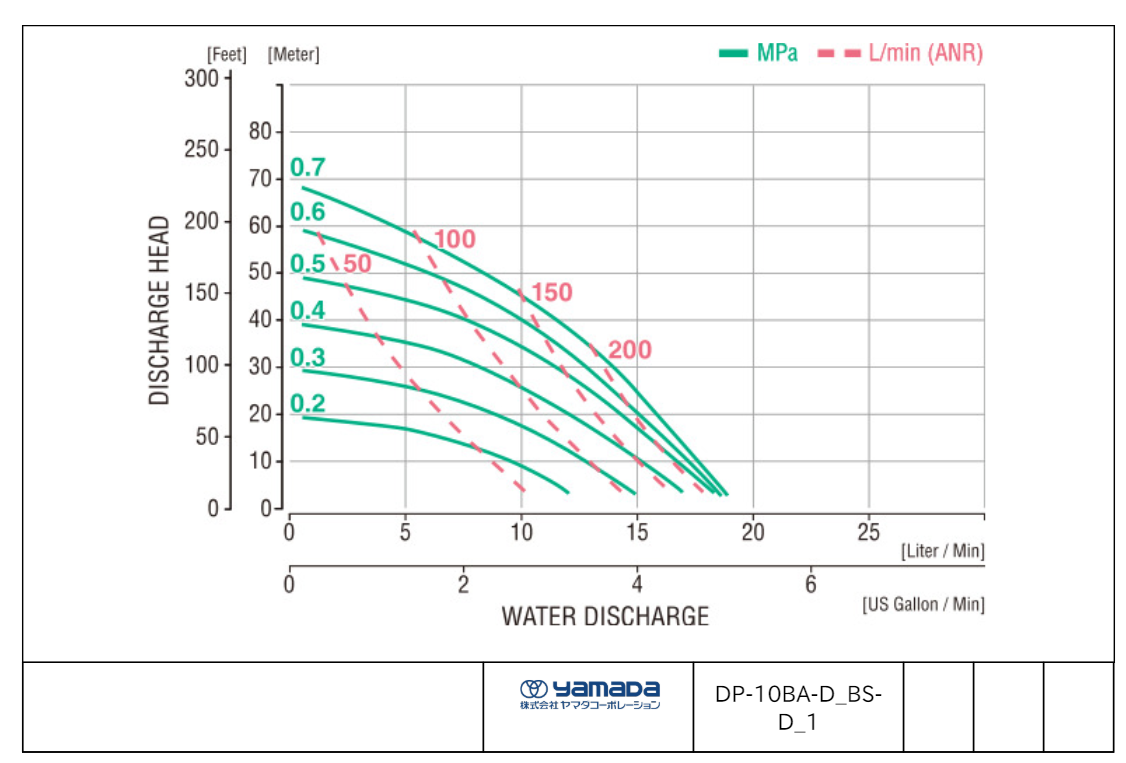

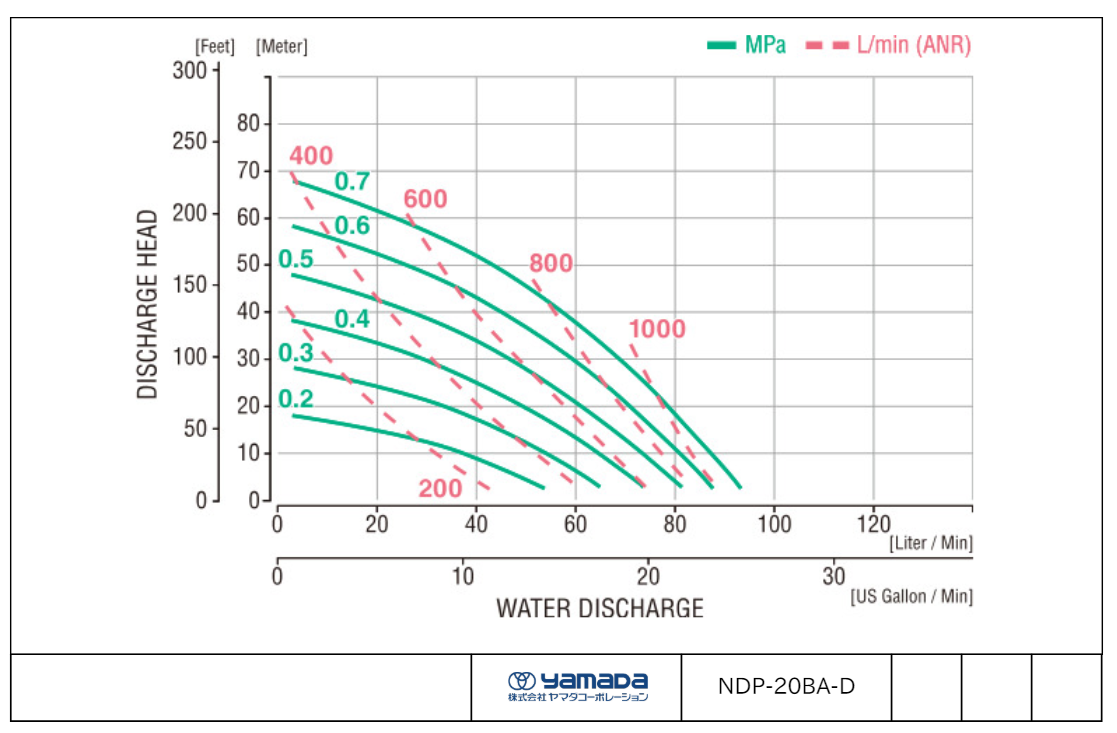

Maximum Flow Rate		18 L/min *2		NDP-20BAT-D: 85 L/min Others: 90 L/min
Maximum Air Consumption		300 L/min (ANR)		NDP-20BAT-D: 1300 L/min (ANR) Others: 1200 L/min (ANR)
Maximum Size Solid		Maximum 1 mm		Maximum 2 mm
Net Weight		4.5 kg	6.2 kg	10.7 kg
Accessory *3		Suction pipe: 713237 (SUS304) Bung adaptor: 803665 (ADC12) *4		Suction pipe: 709406 (SGP) Bung adaptor: 803667 (SS400)

*1 The water discharge is provided as a rough approximation only. It will differ depending on the usage conditions, etc.

*2 Maximum flow rate is a value indicating the pump capacity. We recommend selecting a size that allows some leeway, taking into account the impact on the life span of the diaphragm.

*3 The hose and gun are not included. Please purchase separately.

*4 The standard material of the bung adaptor for the DP-10-D series is “ADC12/A5056” aluminum. We build to order it with SUS304 for handling chemicals, by special order.
