ZTA-5000N Imada
Đồng hồ điện tử dải đo lớn

Chuyên mục: Đồng hồ đo điện tử dải đo lớn Imada

LIÊN HỆ

Feature

High capacity model digital force gauge from 2500N(250kgf) to 5000N(500kgf). Both ZTS/ZTA series are available.

[Mutual Features and Functions of ZTS/ZTA series]

For Accurate Force Measurement
IMADA Digital Force Gauge ZT series measures compression and tension force.
The accuracy +/-0.2% F.S. and the 2000Hz high speed sampling rate capture accurate force values of testing.

High Visible Display & Lamps
The display is adopting OEL. It enables to show force values, unit and others very clearly.
The display has 3 separated rows. They show Force and the necessary information at the same time
such as date, time, high/low setting points and No. of stored data.
The LED lamps above the force gauge help easy checking whether the displayed force is between setting points.

Useful Functions
ZT series equips a lot of useful functions for force measurement.
Peak hold function, Data sending function (up to 1000 points to the internal memory), Pass/Fail decision and more. High-operability force measurements are possible.

Data Output
Many types of output signals are available such as USB, analog , RS232C and more.
Using including software Force logger, ZT series is able to output the data stored in the internal memory to a PC.
Continuous test data output is also possible at 10 data/ sec.
Using optional software Force Recorder (Light / Standard), draw a force- time graph at 2000 data/sec on PC.
It is ideal for detailed analyses.

[ZTA series Original Function]

Direct Data Output for a USB Flash Drive
Not only stored data but also continuous data can be output
for a USB flash drive at 100Hz, 50Hz or 1Hz. ( The sampling rate is selectable.)

Displacement I/O
Connecting a force test stand with a linear scale or a built-in linear scale DMK series,
force-displacement measurement is possible.*
* There is a Force-Displacement Measurement Unit FSA series
including necessary items of force- displacement measurement and analyses.

Other digital force gauge which might be more suitable for your needs:

Standard Model Digital Force Gauge: ZTS series
Standard model digital force gauge from 2N (200gf) to 1000N (100kgf).

High Functionality Model Digital Force Gauge: ZTA series
Advanced model digital force gauge from 2N (200gf) to 1000N (100kgf).
Displacement I/O and direct data sending to a USB flash drive are possible.

Separate Sensor Model Digital Force Gauge: ZT series
For testing at a difficult place for reaching or mounting a regular-type force gauge.

Sensor Interchangeable Amplifier (Force Gauge) : eZT
For various force measurements by sensor interchange.

If you need further information, please click each model name to go to the product web page.

Specifications for High Capacity Model Digital Force Gauge ZT series

Model	ZTA	ZTS
Feature	Advanced model with various functions such as data saving in USB memory stick, displacement I/O and more.	Standard model with the same benefit in performance as ZTA series but reduced functions.
Accuracy	+/-0.2%F.S.+/-1digit
Unit of measurement (*1)	N, kgf, lbf (*2)
Display	4-digit LCD
Display update	16 times / sec.
Sampling rate	2000 data / sec. (max) (*3)
Battery	8 hours (2 hours charge)(*4)
Safe overload rating	Approx.200%F.S.
Operating environment	Temperature: 0 to +40 degree Celsius Humidity: 20 to 80%RH
Function	Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of acceptance or rejection), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Date/time display, Setting lock
Function	1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force	–
Output	USB, RS232C, Mitutoyo digimatic (*5), +/-2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG)
Output	Sub comparator 2 steps (output of large or small judgment)USB flash drive, Displacement	–
Overload warning	Approx.110%F.S. (Warning message shows up and alarm goes off )
Available linear scales (*6)	– Online driver output (a line receiver according to RS422/485 must be built in.) – Open collector output (Voltage drop between contacts must be smaller than 0.5V.)	–
External connecting switch	SEND (a point of contact holding), Zero reset, Peak ON/OFF setting
Weight	Approx.1100g (*7)
Dimensions	Please refer to dimensions.

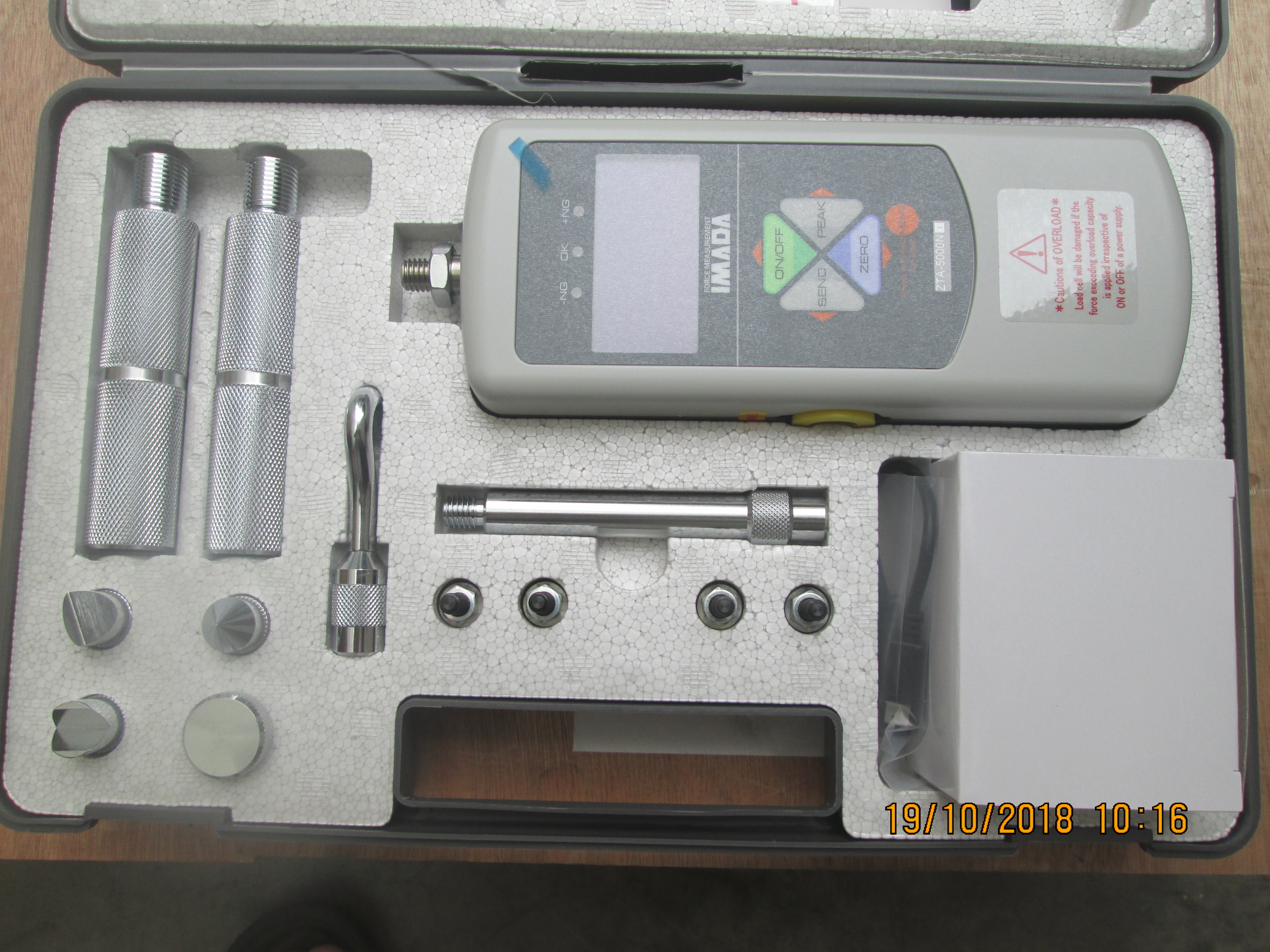

Accessory(*6)	AC adapter, Inspection certificate, CD driver (including simple software for data log), Attachments (The set of attachments varies according to range.), USB cable, Carrying case.
Accessory(*6)	Adapter for USB flash draive (*8)	–

*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model and international one.
*2 [N indication] The indication of 2500N and 5000N model is N or kN.
[kgf indication] The indication of 2N and 5N models is gf.
[lbf indication] The indication of 2N and 5N models is ozf.
*3 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec)
*4 The battery is more consumed when connected to USB flash drive or a linear scale.
*5 Not always available for Mitutoyo digimatic products.
*6 Some linear scales could not be available even if they meet the mentioned specifications.
*7 Weight is slightly different according to range.
*8 USB flash drive is not included.

Model List for High Capacity Model Digital Force Gauge ZT series

Model		Range	Display	Resolution	Thread
ZTA-2500N	ZTS-2500N	2500N (250kgf)	2500N/2.500kN (250.0kgf)	1N/0.001kN (0.1kgf)	M10
ZTA-5000N	ZTS-5000N	5000N (500kgf)	5000N/5.000kN (500.0kgf)	1N/0.001kN (0.1kgf)	M10
